Access Control

Hikvision — Value Series

Description

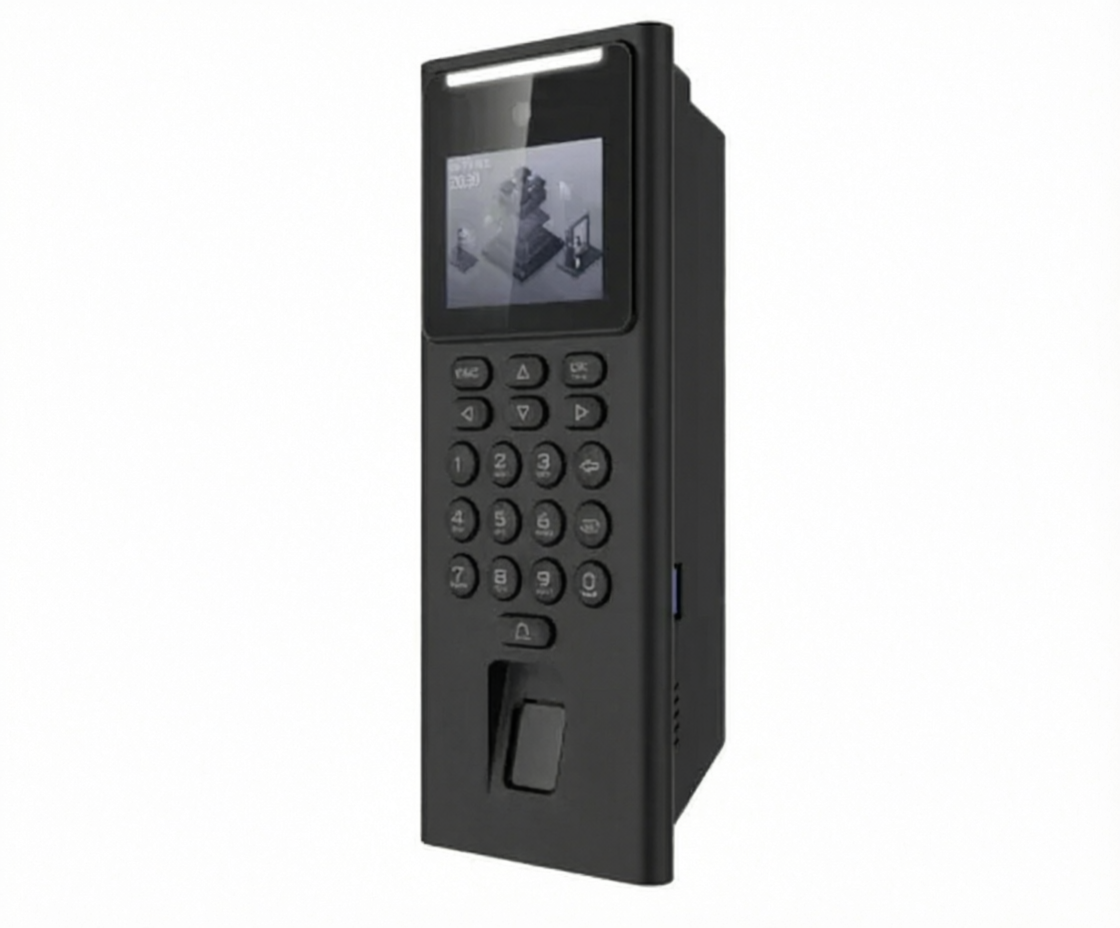

The Hikvision DS-K1T320EFWX is a Value Series Face Access Terminal that combines AI-powered face recognition with fingerprint scanning, RFID card reading, and PIN authentication in a single compact device. Designed for offices, factories, schools, and secure buildings, it delivers fast and accurate biometric identification with a recognition time of less than 0.2 seconds. The terminal also functions as a complete time and attendance management system, capable of storing up to 100,000 events and supporting up to 500 face profiles and 1,000 fingerprints.

Key Features

• Face recognition duration <0.2 sec/user
• Face recognition accuracy >99%
• Supports EM Card (RFID)
• Supports ISAPI & web client configuration
• Face capacity: 500 users
• Fingerprint capacity: 1000 users
• Card capacity: 1000 | Events: 100,000
• Face recognition distance: 0.3 to 1.5 m
• Built-in 2MP camera with IR supplement
• 2.4-inch LCD display — 320×240 resolution

Specifications

Hikvision — Value Series

Description

The Hikvision DS-K1T320EFWX-B is an advanced Face Access Terminal from the Value Series, designed for high-security access control and time attendance applications. It features AI-based deep learning face recognition technology that delivers exceptional accuracy even in challenging lighting conditions. The terminal supports multiple authentication methods including face, fingerprint, card, and PIN, making it a versatile solution for modern access control requirements in offices, industrial facilities, and educational institutions.

With its compact and elegant design, the DS-K1T320EFWX-B integrates seamlessly into any environment. It supports remote configuration via web browser and ISAPI protocol, enabling easy integration with third-party access control management software.

Key Features

• Deep learning AI face recognition technology
• Recognition accuracy exceeding 99%
• Ultra-fast recognition — under 0.2 seconds
• Multi-mode authentication: Face, Fingerprint, Card, PIN
• Anti-spoofing — detects photos and fake faces
• Built-in 2MP wide-angle camera with IR supplement
• Supports EM card and Mifare card reading
• Remote configuration via web client and ISAPI
• Time and attendance management built-in
• Tamper alarm and door contact input

Specifications

Hikvision — 1102 Series

Description

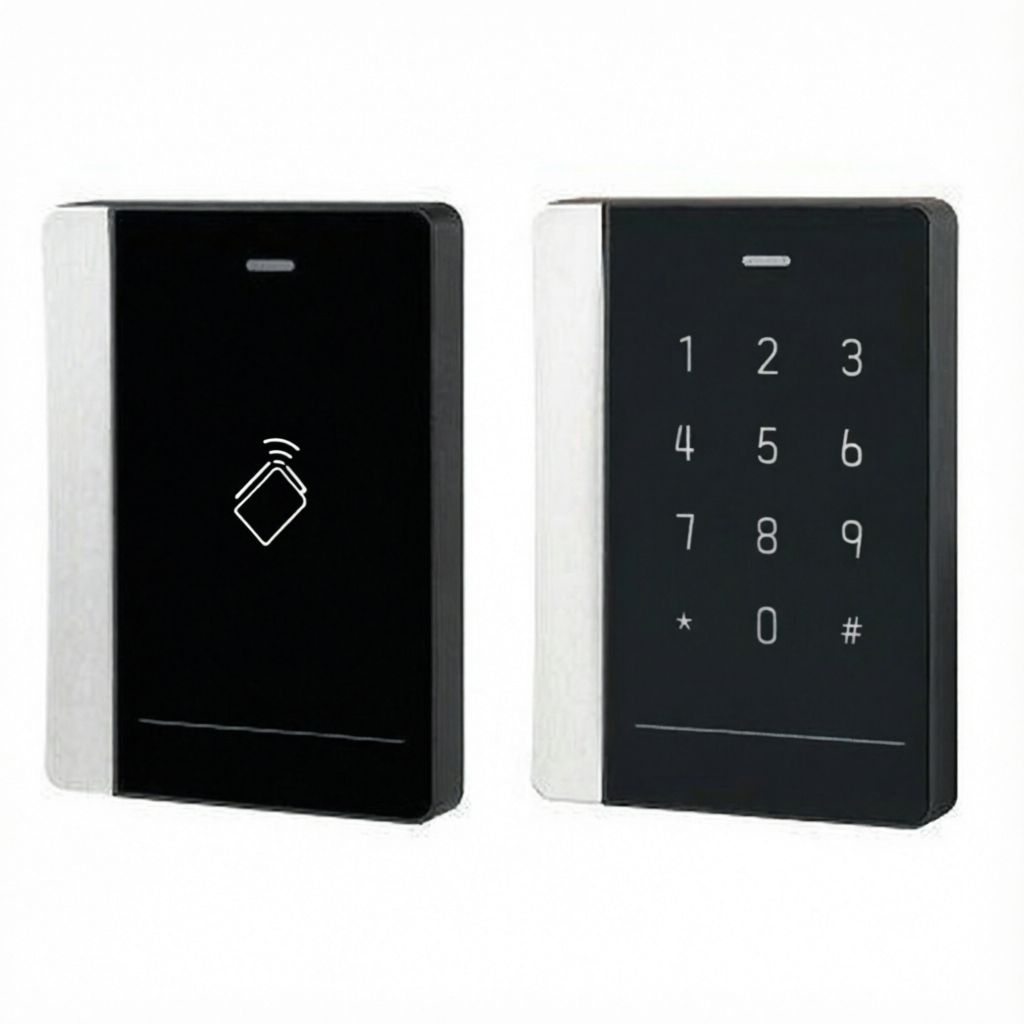

The Hikvision DS-K1102 Pro is a professional Wiegand card reader from the 1102 Series, designed for reliable and secure access control applications. It supports both Mifare1 and EM card formats, making it compatible with a wide range of access control systems. The reader features a PC+ABS material shell with a PMMA panel design for durability and aesthetics, along with a built-in audible beeper and LED indicator for clear access feedback. With IP64 protection and an operating temperature range of -20°C to +65°C, it is suitable for both indoor and outdoor installations.

Key Features

• Supports Mifare1 and EM card formats
• Wiegand and RS-485 interface support
• Built-in audible beeper for access feedback
• LED indicator for visual status
• PC+ABS shell with PMMA panel design
• IP64 protection — dust and water resistant
• Read range up to 50mm
• Integrated keypad for PIN entry

Specifications
