Fire Evacuation Intercom

Reliable hands-free emergency communication system designed for fire evacuation scenarios in elevator systems — ensuring clear voice contact between floors and the main control unit

Hands-Free Communication

Loudspeaker-based communication — no handset required

Clear Loud Voice

High-quality audio for clear conversation during emergencies

Built-In Battery Backup

NI-CD battery pack ensures operation during power failure

Single Button Emergency Call

One-press operation for instant emergency communication

Multi-Button Call Option

Multiple call buttons available for flexible configurations

Five Wire Connection

Simple and standardised wiring for easy installation

Simple Installation

No programming required — easy single-button operation

No Hassles

Plug-and-play design with no complex configuration needed

Emergency Ready

Designed specifically for fire evacuation safety compliance

Fire Evacuation Intercom System

1

Fire Evacuation Intercom

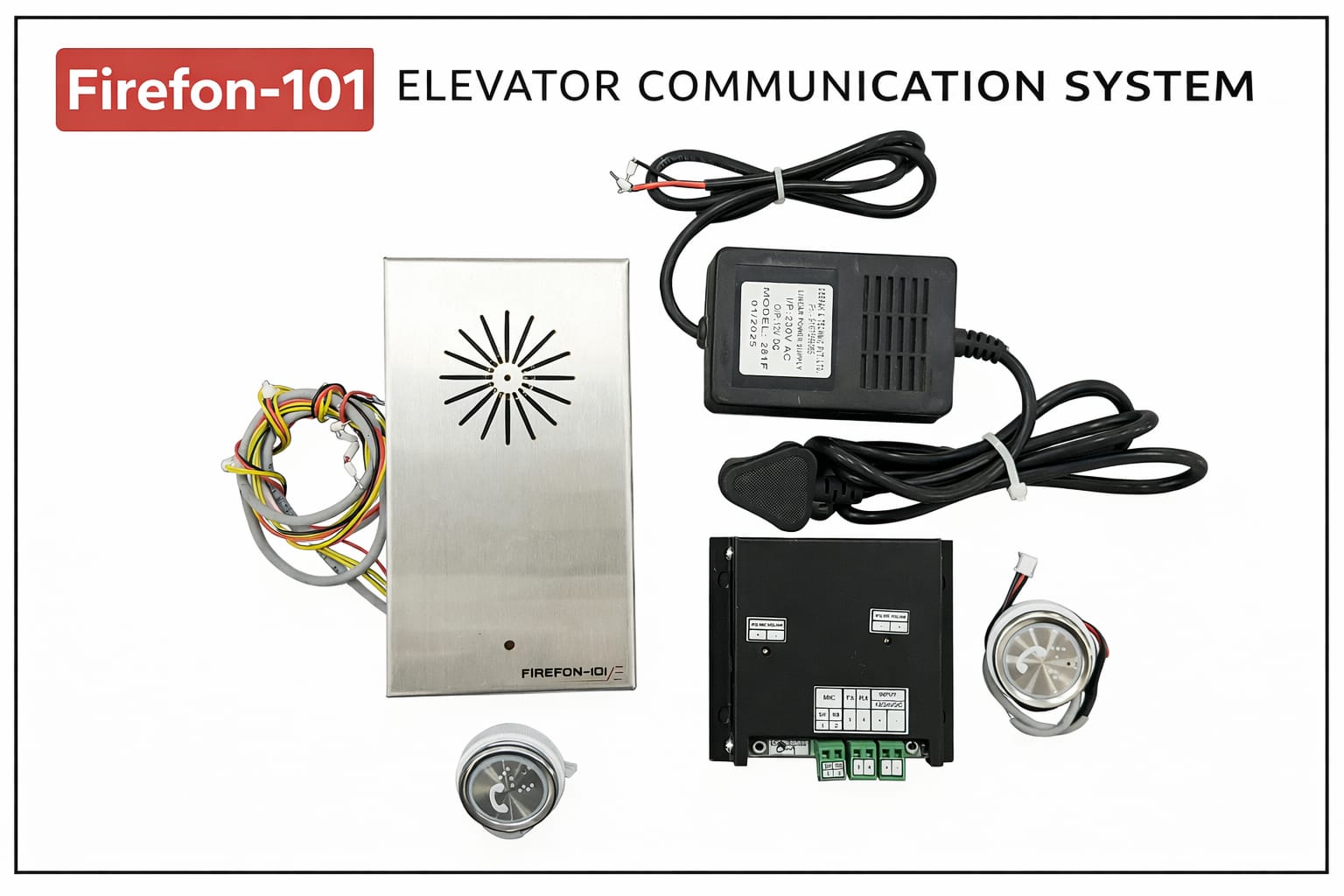

Fire Evacuation Intercom Main Unit

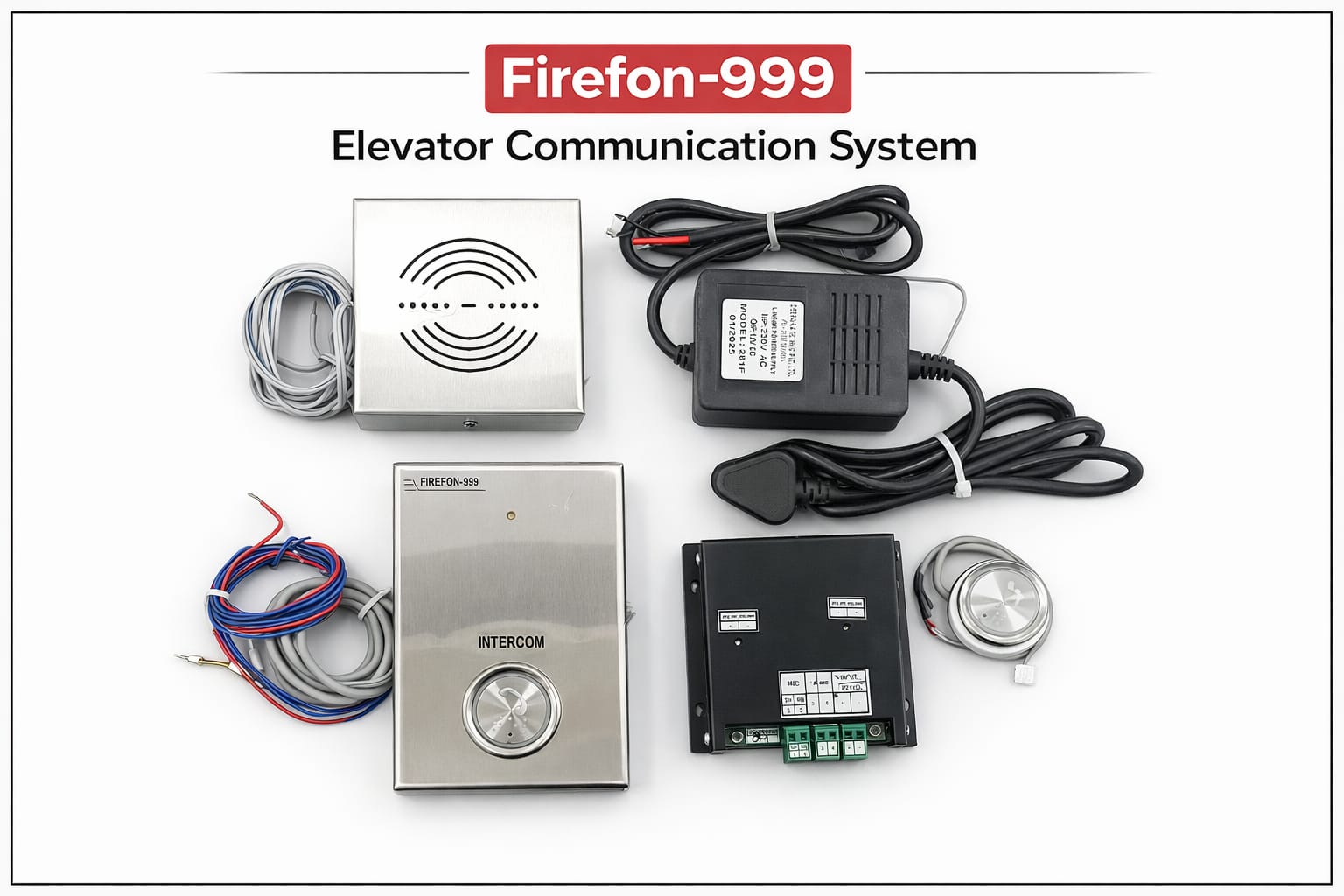

Fire Evacuation Intercom Unit 1

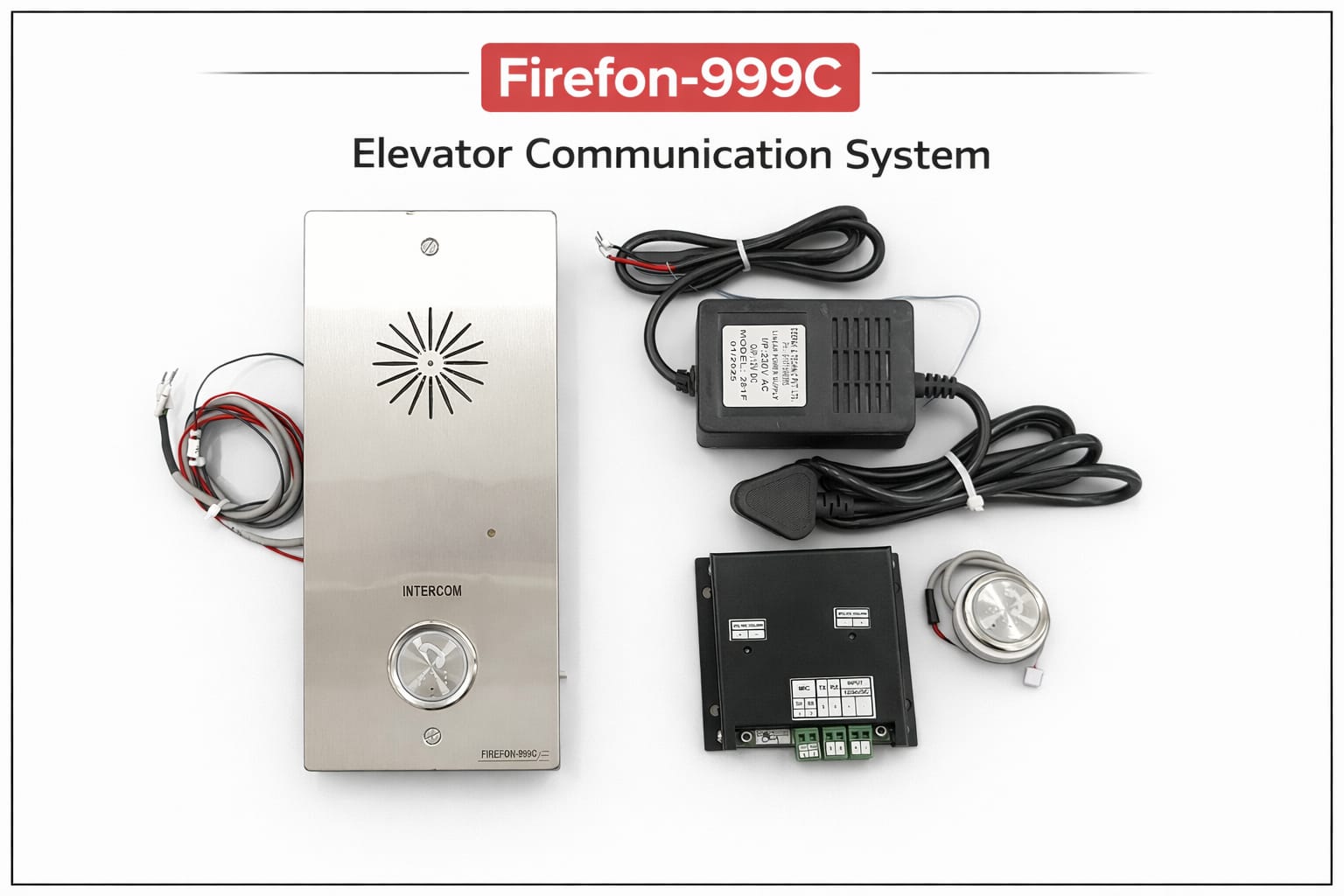

Fire Evacuation Intercom Unit 2

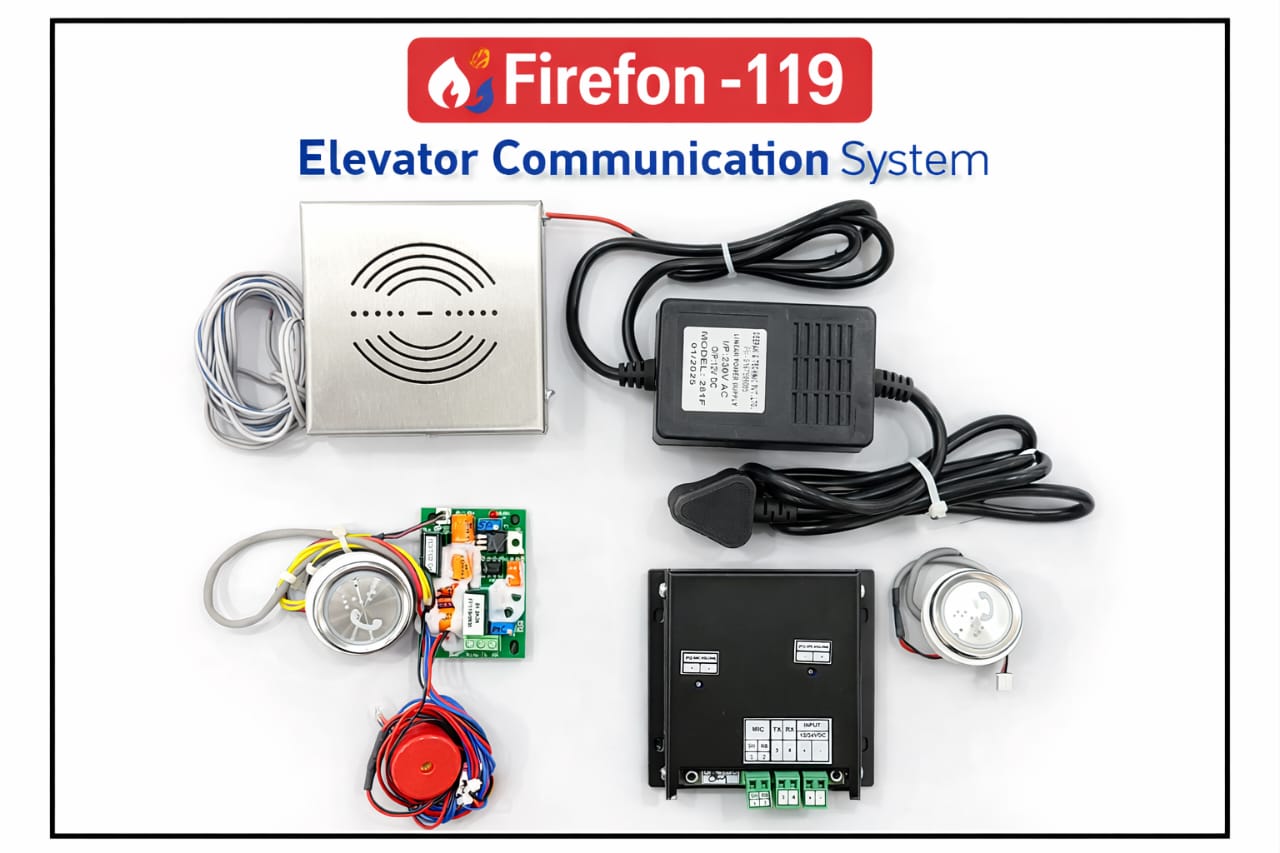

Fire Evacuation Intercom Unit 3

Key Features

  • Hands-free communication via loudspeaker
  • Clear loud voice conversation
  • Built-in battery backup
  • Single button emergency call
  • Multi-button call option also available
  • Simple selection & installation
  • Five wire connection
  • No programming — no hassles
  • Easy & single button operation

Specifications

Supply Voltage230V, 50Hz — connected to the main unit
Power ConsumptionLess than 5VA
Power BackupNI-CD Battery 9 Pack — 10.8V, 600mAH
Telephone TypeAnalog — specially designed for its own system
Main Unit Dimensions260mm × 256mm × 105mm
Speaker Unit140mm × 95mm
LOP PCB73mm × 52mm × 30mm
LOP Switch35mm × 25mm × 20mm
LOP Buzzer50mm × 20mm

Available Solutions

1

Integrated LOP & Lift Intercom Unit

  • Combines LOP and Lift Intercom into a single compact unit
  • Customizable — client provides LOP buttons and display
  • Single installation covers both LOP and intercom functionalities
  • Crystal-clear audio between passengers and emergency responders
  • Sleek design that blends with elevator interior aesthetics

Requirements

  • LOP buttons and display to be provided by the client
  • Speaker box installation required for full functionality
2

Separate LOP & Lift Intercom System

  • Standalone intercom unit — works independently of the LOP
  • Flexible installation at any location within the lift system
  • Independent maintenance — easier troubleshooting
  • Robust performance in emergencies and everyday use

Requirements

  • LOP unit and intercom system installed separately
  • Speaker box required for effective audio communication

How It Works

Call Triggered from the Lift Car

  • All intercom systems on the landings ring simultaneously
  • Any person at a landing can press their button to connect the call
  • Landing person must keep the button pressed for their voice to be audible in the lift car
  • Lift car occupant can speak freely without pressing any button

Call Triggered from a Landing

  • Call automatically connects to the lift car
  • Landing person must continuously press their intercom button to be heard inside the lift car
  • Lift car occupant can respond without pressing any additional buttons

Lift Car Installation Process

  • Connect the Lift Intercom directly with the Elevator COP
  • Lift Intercom Call Button connects to the Car Top Unit
  • Mic unit provided — securely glued to the COP
  • Pressing the Call Button triggers all intercom systems at each landing
