High-quality PCBs and ferrite transformers engineered for elevator control systems, power electronics, and industrial automation applications
Tight tolerances and quality control for reliable performance
Built to withstand industrial environments and long service life
Optimized designs minimize energy loss and heat generation
Every component tested before dispatch for assured quality
Tailored PCB layouts and transformer specs on request
Suitable for elevators, UPS, inverters, and industrial controls
Description
Elecom's Printed Circuit Boards (PCBs) are precision-engineered for elevator control systems, power electronics, and industrial automation. Manufactured using high-quality FR4 substrate with copper traces, these boards deliver reliable electrical performance in demanding environments. Each PCB undergoes rigorous quality testing to ensure zero-defect delivery.
Available in single-layer, double-layer, and multi-layer configurations, our PCBs are designed to meet specific application requirements with tight dimensional tolerances and excellent thermal management.
Key Features
Specifications
| Base Material | FR4 Glass Epoxy |
| Copper Thickness | 1 oz / 2 oz |
| Board Thickness | 0.8 – 3.2 mm |
| Surface Finish | HASL / ENIG / OSP |
| Solder Mask | Green / Blue / Red |
| Silkscreen | White / Yellow |
| Layers | 1 – 8 Layers |
| Min. Trace Width | 0.1 mm |
| Min. Hole Size | 0.2 mm |
| Glass Transition (Tg) | 130°C – 170°C |
| Operating Temp. | -40°C to +130°C |
| Compliance | RoHS / UL |
Description

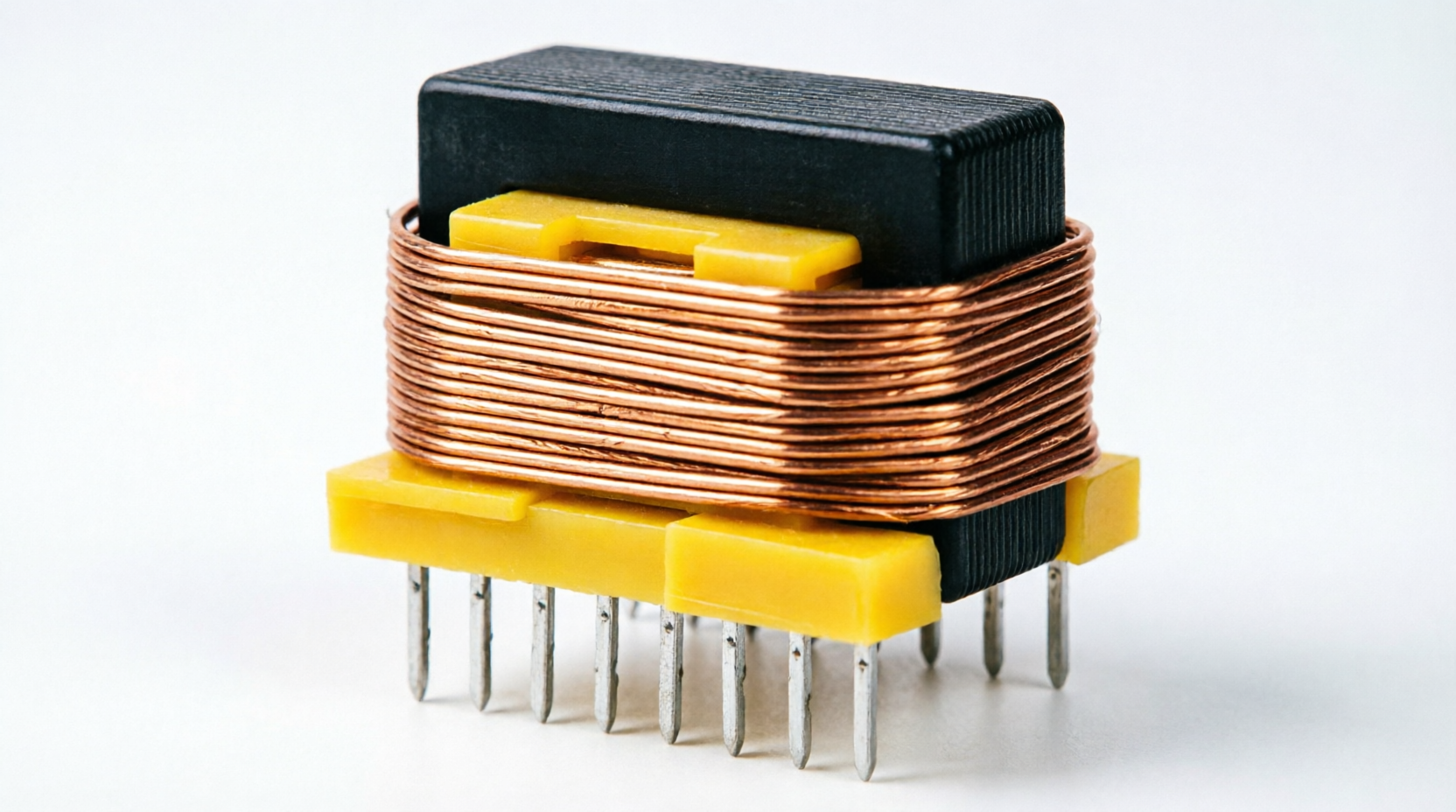

Elecom's Ferrite Transformers are high-frequency power transformers designed for switch-mode power supplies (SMPS), elevator control boards, UPS systems, and inverter circuits. Built with high-permeability ferrite cores, they offer excellent energy transfer efficiency with minimal core losses at high frequencies.
The ferrite core material provides superior magnetic properties compared to silicon steel, making these transformers ideal for compact, high-efficiency power conversion applications operating from 20 kHz to 500 kHz.
Key Features
Specifications
| Core Material | MnZn / NiZn Ferrite |
| Core Shape | E-Core / EI / Toroid |
| Permeability (µi) | 1000 – 10000 |
| Saturation Flux (Bs) | 400 – 500 mT |
| Curie Temperature | >200°C |
| Winding Wire | Enamelled Copper |
| Operating Frequency | 20 kHz – 500 kHz |
| Power Range | 1W – 500W |
| Efficiency | >95% |
| Operating Temp. | -25°C to +120°C |
| Insulation Class | Class B / Class F |
| Compliance | RoHS / CE |
Contact our team for detailed specifications, custom orders, and pricing
